AKW – M20 – DigiPump – with 90mm Diameter Waste (Chrome)

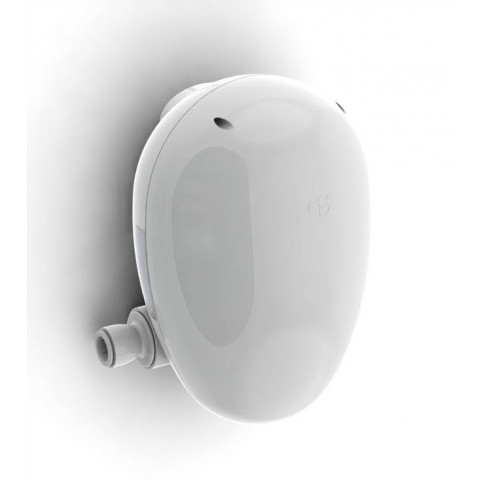

Digipump M20 with 90mm Diameter Chrome Waste

Benefits

• Quiet in operation, no disturbing noises
• Compact, with the pump and controller enclosed in one unit
• Easy to install

Features

• 20 litres/min in 'real life' scenario testing
• 22mm inlet and 22mm outlet connectors
• Non-handed unit (to fit left or right hand)
• IP45 rated
• Pump head uses 4 valves for better debris cleaning
• Pump head can be rotated to allow flow in either direction
• Maximum outlet head 1.0m (39in)
• Maximum inlet head of 0.5m (19in)
• Maximum combined head and lift 1.5m (59in)
• Supply 230v AC 50Hz 73W
• Internal T5A fuse
• Duty cycle 30 mins max on 50% duty
• Flow meter input
• Only shower waste pump range to be Kitemarked
• Additional flow sensor kits are required for use with dual feed showers
• 5 year warranty as standard
• Compatible with Tuff Form, Braddan, Mullen and Multi Spec trays
• BS EN 61558-1, BS EN61558-2-6
• BS EN 60335-1, BS EN 60335-2-41
• BS EN 60529
• E MC Directive 89/336/EEC
• Low Voltage Directive 73/23/EEC

Ultimate performance for Mixer and Electric Showers

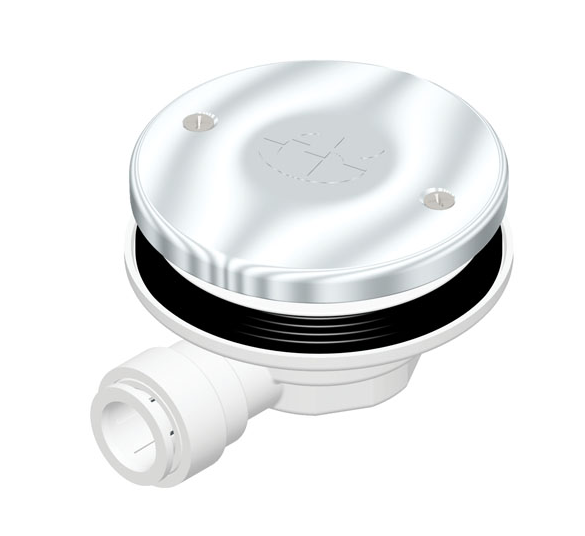

PW90  90mm diameter pumped waste

• Good seals & location
• Built-in filter
• 44mm deep below mounting surface
• Opens for easy cleaning and rodding
• 44mm deep below mounting surface = 22mm
• Overall depth 66mm (22mm)
• 15mm & 22mm John Guest Speedfit outlets available

Patent: GB2375479
