AKW – ONYX – Combo Mixer Shower KIT with Riser & Incorporated Grab Rails (TMV2 Valve) (LH / RH)

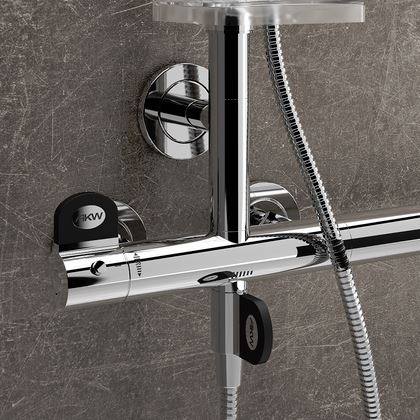

The contemporary Onyx Combo Mixer Shower features a TMV2 approved mixer valve which is cool to touch and easily operated using two paddle levers.

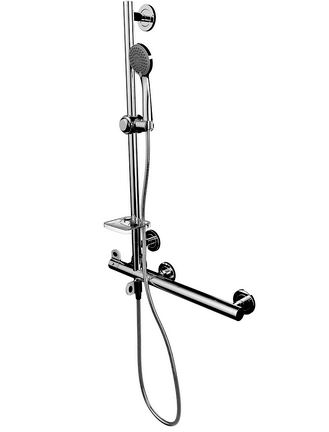

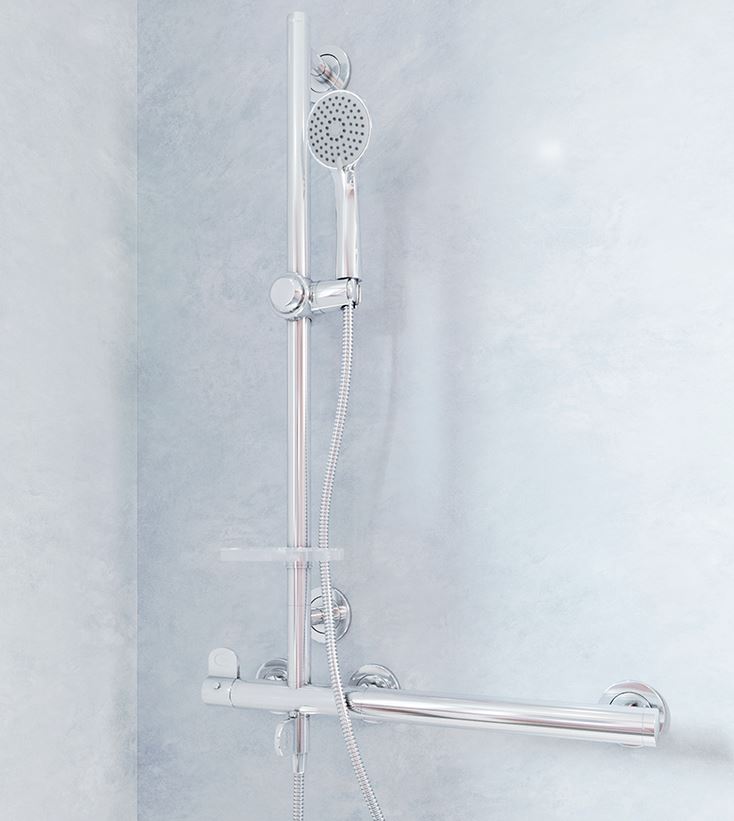

The Onyx Combo also cleverly incorporates two weight-loading grab rails into the L-shaped design, these extend from the valve with a vertical riser and horizontal grab rail able to support users of up to 23.5st (150kg).

Product Specification

+ Fixing points per wall flange: 3
+ Wall flanges: 5
+ Fixing points for additional shower head holder: 2
+ Dynamic pressure: 0.5-5 Bar
+ Static pressure: 1-10 Bar
+ Inlet fitting: ½” BSP
+ Outlet fitting: ½” BSP
+ Inlet cold temperature range: 4 - 25°C
+ Inlet hot temperature range: 55 - 65°C
+ Temperature range: 16 - 49°C
+ Safety setting: 38°C override button setting, limited high temperature 49°C (+/-2°C)
+ Flow rate: 8.5l/min (3 Bar)

Tube Diameter

• Horizontal: 42mm
• Vertical: 32mm

Wall Clearance

• Horizontal rail: 56mm
• Vertical rail: 61mm

Kit Includes:

• Mixer shower valve with interchangable white and black paddles
• Load-bearing vertical riser rail
• Load-bearing horizontal grab rail
• Clear soap dish
• Sliding shower head bracket
• 3 spray mode shower head
• 2m shower hose
• Additional shower
