AKW – ONYX – Shower Tray, Low Level (Sizes & Colours) CALL TO CHECK STOCK

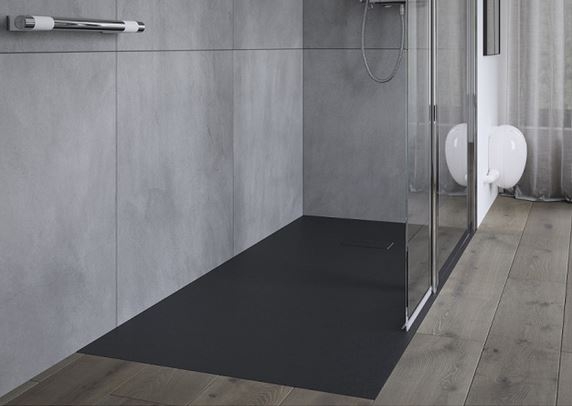

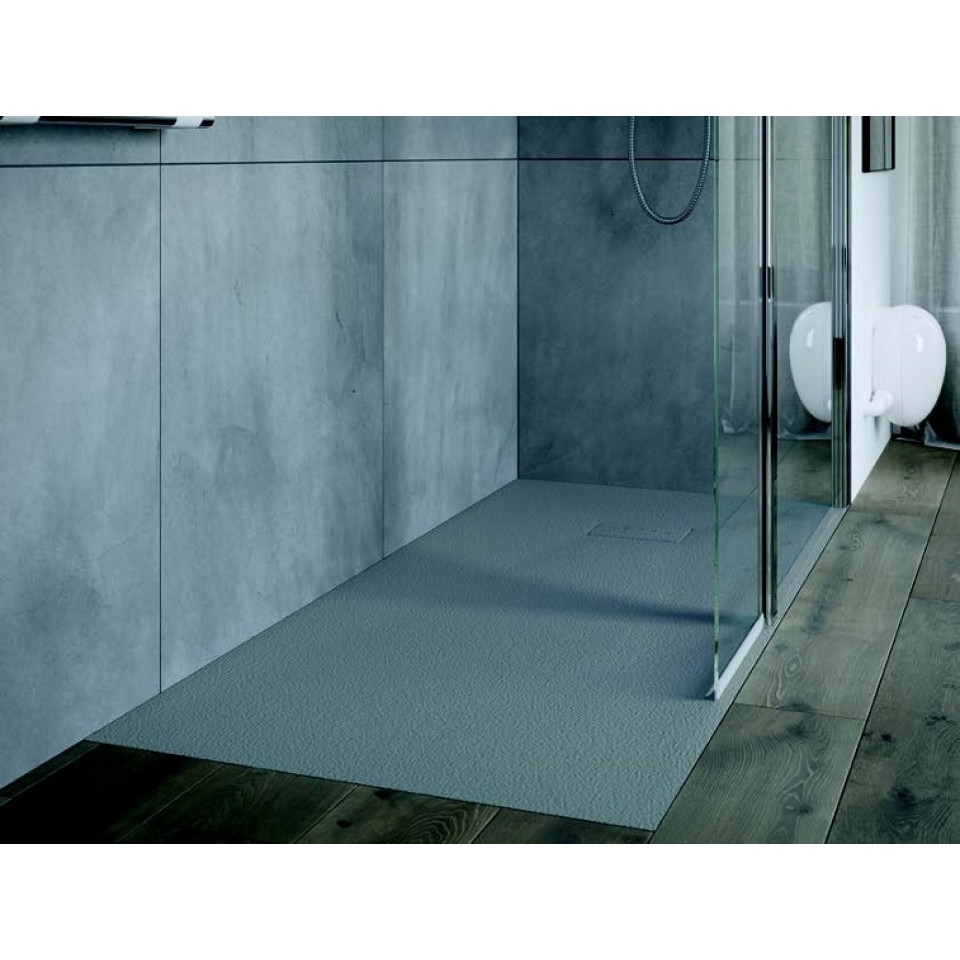

• Modern design with three colour options Black, White or Grey - Designed to suit personal preference
• Manufactured using compressed GRP - Unrivalled strength and stability for peace of mind
• Can be trimmed to size on site - Allows installers to adapt the installation to suit users requirements
• Tray thickness only 26mm - Can be fitted to create a fully recessed or low level access showering installation
• Slate effect finish - Offers a contemporary modern look and slip resistant surface
• Lightweight - Quick and easy installation
• Lifetime Warranty (please refer to our terms and conditions) - Provides peace of mind
• Colour coordinated waste cover with slots - Waste is concealed out of sight offering a sleek finish
• Colour options - Colour coordinated waste cover with slots
• Product weight under 25kg - Very light and easy to handle for installation
• High water flow rate of 30 litres per minute - Ensures excellent water drainage
• Can be fitted with all AKW screens - Compatible with Larenco, Level Best, Silverdale and Standard Screens

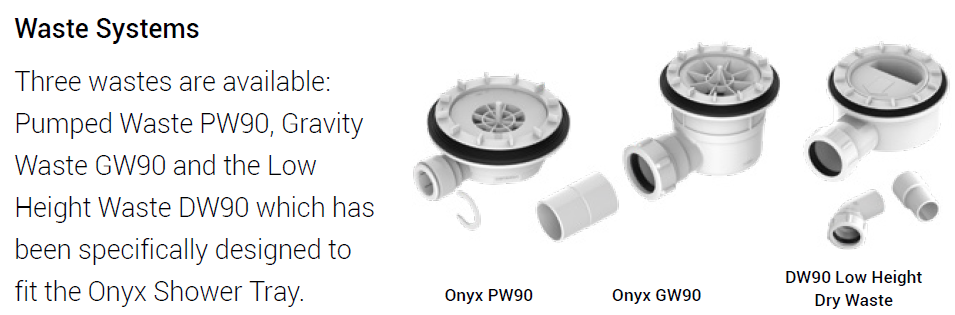

Compatible wastes

DW90 Low Height Dry Waste (Must be ordered with the 40mm pipe adapter-connecting kit) (25496 + 16-006-058)

• 90mm Diameter: Suitable for Onyx trays only
• Very compact
• Shallow 54mm depth. Useful for solid floors or shallow joists.
• Non return valve preventing bad odour backflow
• Trap will not dry out with sporadic use
• Top access for easy cleaning
• High flow rate (30 l/min with 25mm head and 1m of pipe)
• Good seals and location
• Suitable for push fit pipe (with optional adaptor 16-006-058)
• Suitable for solvent weld pipe (with optional adaptor 16-006-058)
• Meets performance requirements of British Standards

GW90 Onyx Gravity Waste (25494)

• Built in filter
• Opens for easy cleaning and rodding
• 50mm watertrap depth (seal)
• 90mm threaded waste fitting
• Overall depth 110mm
• Depth below tray 90mm
• Compatible with any Onyx tray

Material: SMC (Sheet Moulding Compound)
Colour : white or Black
Tray height: 26mm
Can be cut to size within 15cm from the waste area
Product weight under 25 kg/Very light (max 25kg), extra-thin
High water flow rate (30 l/min)
Weight load : 200kg/Maximum load: 200kg
Shallow depth waste (54mm under the tray)
Dry Trap

Product advantages:
Lifetime warranty
Wheelchair accessible
Easy access
Ideal solution for bathtub replacement
Sleek design
Technical characteristics :
Material: SMC; thickness: 26m
