AKW – Contour – P12 Pump Link Kit, Option B with CUW01

Link Kit B: P12 Pump + Floor former gully

Shower Waste Pump is the quiet, unblockable, maintenance FREE and variable speed shower waste pump for when gravity drainage is unavailable.

FEATURES

• Peristaltic pump design.
• Safe 24v DC low energy motor.
• NEW wall plate with quick release pump bracket.
• Complete with 2 metre length of 22mm flexible pipe for improved performance.
• Self priming up to 500mm.
• Pumps up to 12 litres per minute.
• NEW variable speed transformer.
• Not handed.

P12 Pump Link Option B, with USG1 - WH gully

BENEFITS

• Pumped water travels through a sealed tube reducing the risk of blockage.
• Near silent operation.
• MAINTENANCE FREE design comes with a 5 YEAR WARRANTY.
• Low running costs due to the 24v DC efficient low energy motor.
• NEW wall plate with quick release pump bracket minimises installation time.
• Can be retrofitted and is compatible with all manufacturers 22mm wastes.
• Not handed for easy and quick installation.
• Match speed of pump to flow of water.
• Suitable for electric and mixer showers. *(Additional flow switch required for mixer shower installations).
• Link directly to a Redring Selectronic Premier WP link enabled shower eliminating the need for a flow switch, see ‘Link’ options.

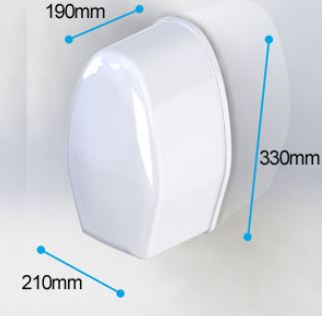

Pump housing dimensions: A = 190mm, B = 210mm, C = 330mm

Pump only dimensions: A = 180mm, B = 205mm, C = 270mm

KITS:

• PUMP ONLY - For top access shower trays
• KIT A - For shower trays (If using an Eagle TWO or Prinia use Kit D)
• KIT B - For floor formers
• KIT D - For shower trays with 90mm diameter waste

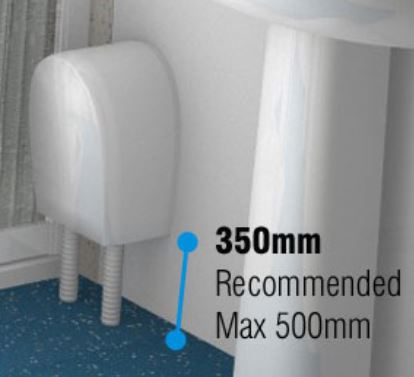

To achieve optimum pump performance of 12 litres per minute we recommend the pump be installed no higher than 350mm from the top of the shower waste outlet to the underside of the wall plate.

The pump can be installed upto a maximum height of 500mm to the underside of the wall plate, but this will reduce the pumps overall performance.
