Contour – AKW – SD Shower Dec Wet Room Floor Former, All Sizes (VINYL / TILED Floors)

For people who may require complete access to the shower area, our extensive range of wet room floor formers provide the perfect solution.

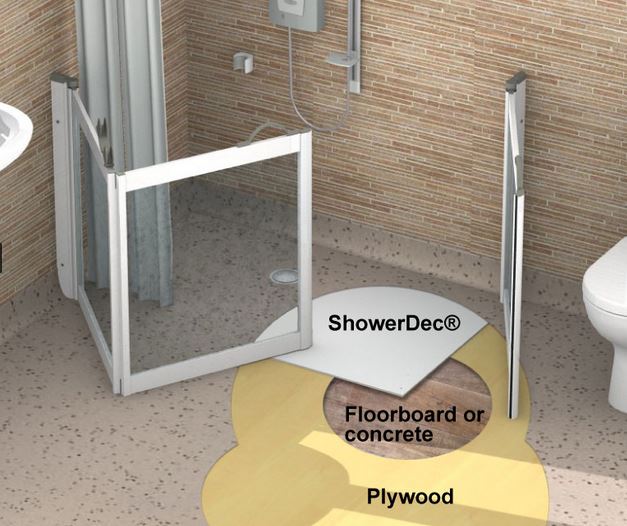

You can quickly create a walk in wet room by installing a ShowerDec® wetroom floor former into the bathroom floor. Wet room floor formers have a pre-formed gradient moulded into their top surface, so there is no need to manually create a fall in the floor to the shower trays waste position.

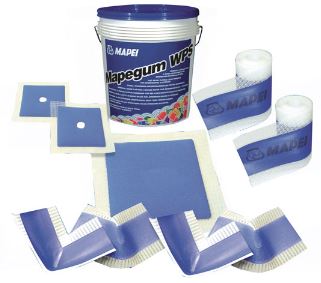

ShowerDec® wet room floor formers greatly reduce installation time and are quicker and easier to install than traditional screeded methods. A Wet Room Membrane is a waterproof membrane kit that should be used beneath ceramic tiles in a wet room.

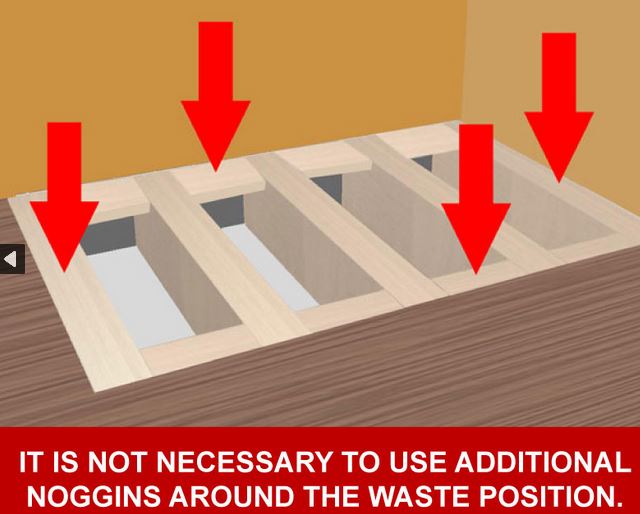

ShowerDec® has been tested to withstand 100 Stone / 635kg and as such, it is not necessary to use additional noggins around the waste position assisting ease & speed of installation. (*Tested in accordance with a standard floor with 16" joist centres of 47mm width & supported around the floor former outer edges. No additional support around the waste area).

PRODUCT FEATURES

• Create a level access shower area using a ShowerDec® wet room floor former which is concealed beneath the vinyl or tiled flooring once installed

• No additional support needed around the waste assisting ease & speed of installation

• 24mm thick to facilitate installation with existing floorboards

• 40mm flat area around the wet room floor former perimeter for door placement & water retention

• Larger shower area, ideal for wheelchairs

• Range of half height shower doors available

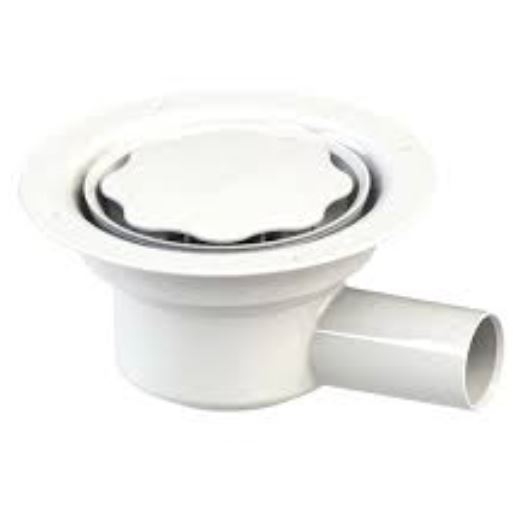

• Supplied without a waste, view waste options

• Lifetime guarantee

• ShowerDec® pre-formed wet room shower trays are not handed

• No raised collar around the underside of the waste making installtion on timber floors easier.

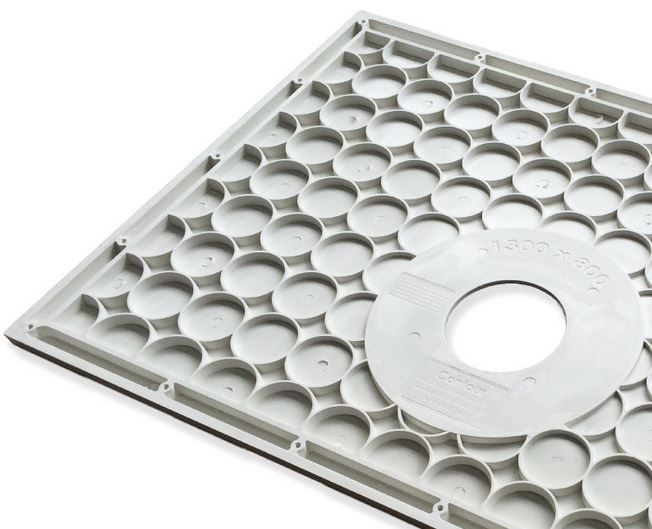

• Circular ribbed underside designed for setting into a concrete or screed base and eliminates slippage when installing.
• Textured top surface allows excellent adhesion of vinyl flooring.
• Excellent falls built into the top surface.
• Pre-formed semi-drilled fixing points.
• Easily cut to size onsite using a circular saw or jigsaw.
• Suitable for timber & screeded floors.
• Offset waste positions to avoid joists.
• Designed to be used with floor tiles if preferred. A suitable tanking membrane would also be needed.

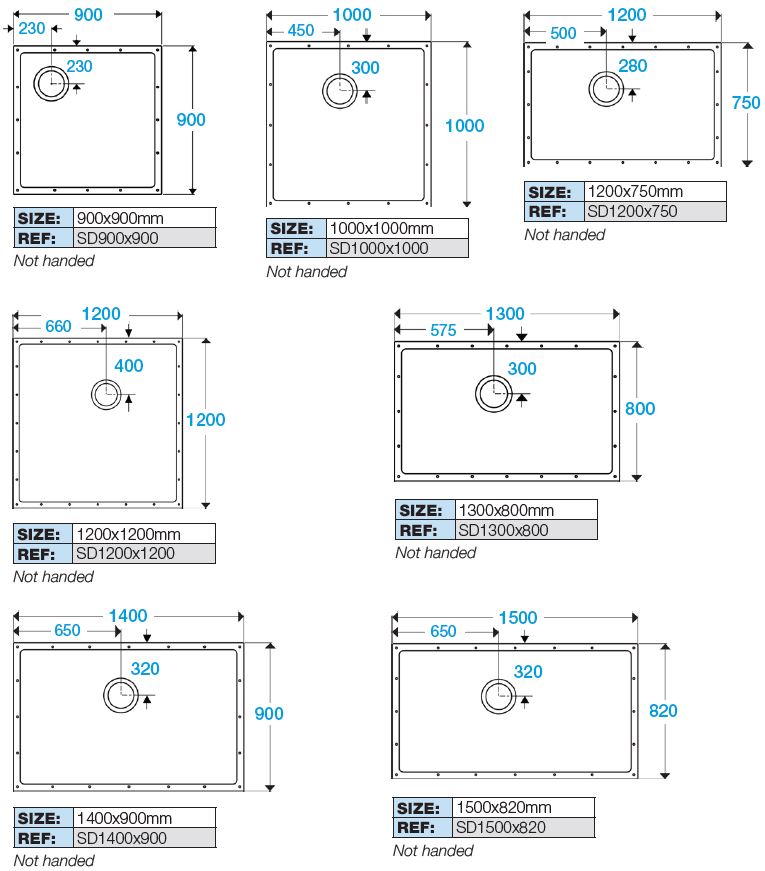

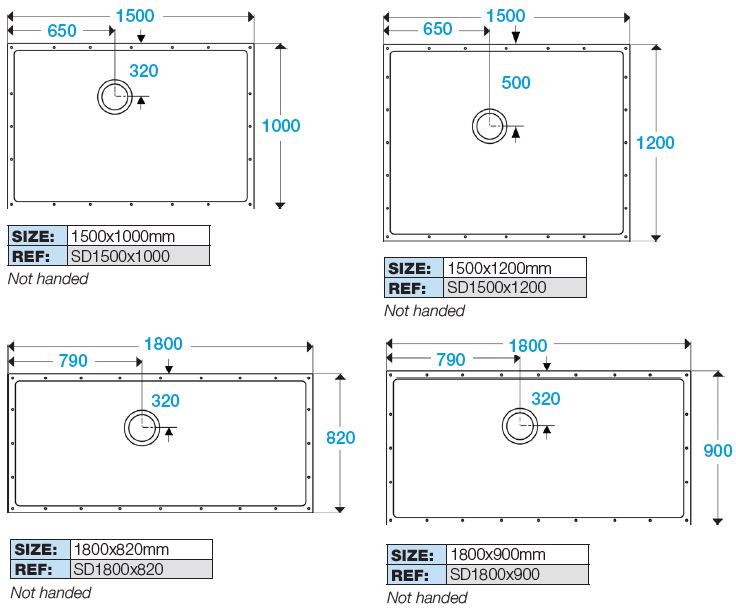

• ShowerDec Wet Room Floor Former Details
• ShowerDec Wet Room Floor Former Fitting Instructions

-------------------------------------------------------------------------------------------------------------------------------------------------------

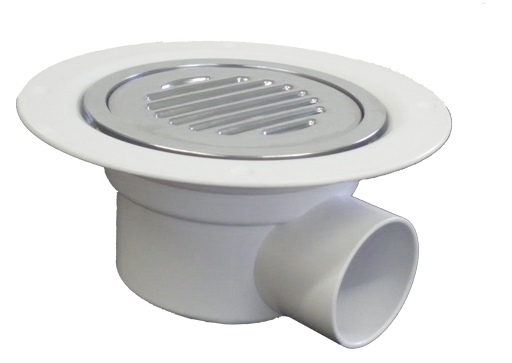

The image below is the TSG52 Waste Stainless Steel option for VINYL FLOORS

-------------------------------------------------------------------------------------------------------------------------------------------------------------------

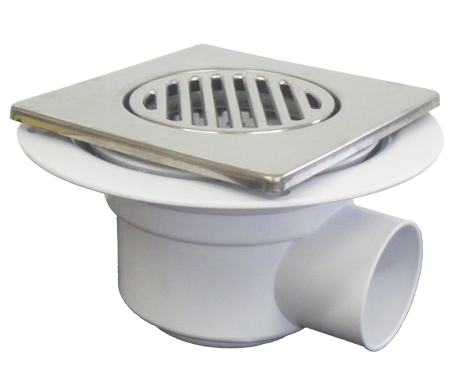

The Image below is the TSG52 with the Stainless Steel Adaptor required for TILED FLOORS
