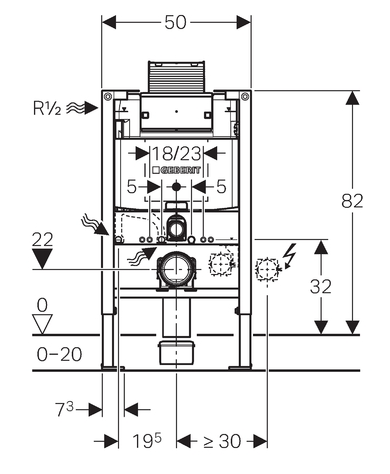

Geberit Duofix Frame for Wall-hung WC Height: 820mm, with Omega cistern 120mm (111.004.00.4)
Technical data
-
Flow pressure (0.1-10 bar)
-
Maximum operating temperature, water (25 °C)
-
Flush volume, factory setting (5.8 and 3 l)
-
Flush volume large, adjustment range (4.5 / 6 / 7.5 l)
-
Flush volume small, adjustment range (3-4 l)
-
Calculated flow rate (0.11 l/s)
-
Minimum flow pressure for calculated flow rate (0.5 bar)
Application purpose
- For drywall construction
- For wall-hung WC's with connection dimensions in accordance with EN 33:2011
- For installation in part-height prewall installations

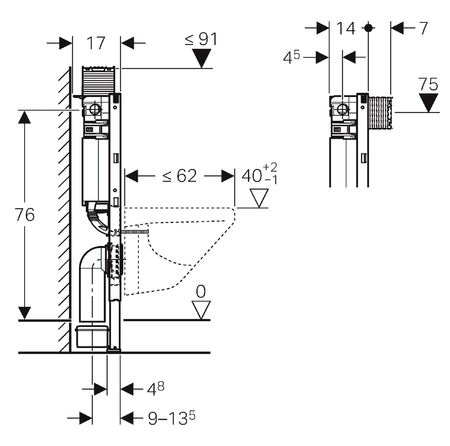

- For wall-hung WC's with projection up to 62cm (620mm)
- For installation in part-height Geberit Duofix system walls
Characteristics
- Self supporting frame, powder-coated
- Galvanized feet
- Rotatable foot plates
- Fastening for connection bend, sound-absorbing
- Cistern fulfils standard requirements in accordancewith E?N 14055, Class 2
- Water supply connection on the left or rear left
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- Frame with 9mm drilling holes for fastening in wood frame construction
- Feet adjustable 0-20cm
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Concealed cistern with top or front actuation
- Immediate post flush possible with factory setting
- Protection cover box for service opening protects against moisture and dirt
- With fastening option for electrical connection
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
- Non-slip leg supports
- Connection bend can be mounted without tools at different depths, adjustable range 45mm
- Concealed cistern fully insulated against condensation
- Tool free installation and maintenance work on concealed cistern
- Protection box for service opening can be cut to length
Scope of delivery
- Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
- Connection set for WC, ø 90mm
- Adaptor socket made of PE-HD, ø 90 / 110mm
- Cup for flush volume reduction 4.0 / 2.6L
- Fastening material
- Protection box for service opening
- 2 wall anchors
- Connection bend 90° made of PE-HD, ø 90mm
- 2 protection plugs
- 2 threaded rods M12
