Novellini – DUO KIT – Two-way Fall Deck with Linear Drain, Trap & Tile Edge Trim

Our range of pre-formed shower Decks has been developed specifically to allow the installation of a level floor wetroom on a timber floor.

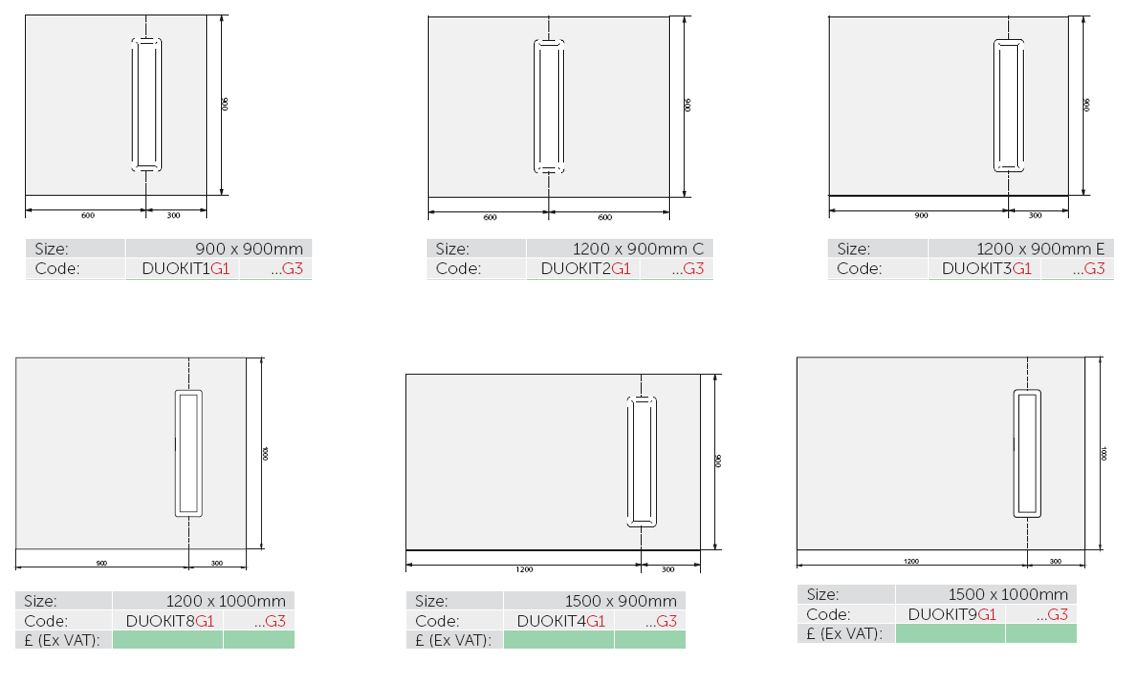

Available in a range of sizes, the Deck has a pre-formed engineered slope, ensuring that water from the shower is directed towards the integral drain, guaranteeing a perfect gradient every time. Novellini Wetroom floor systems are suitable to be installed in combination with electric underfloor heating (max specification 150W / m².

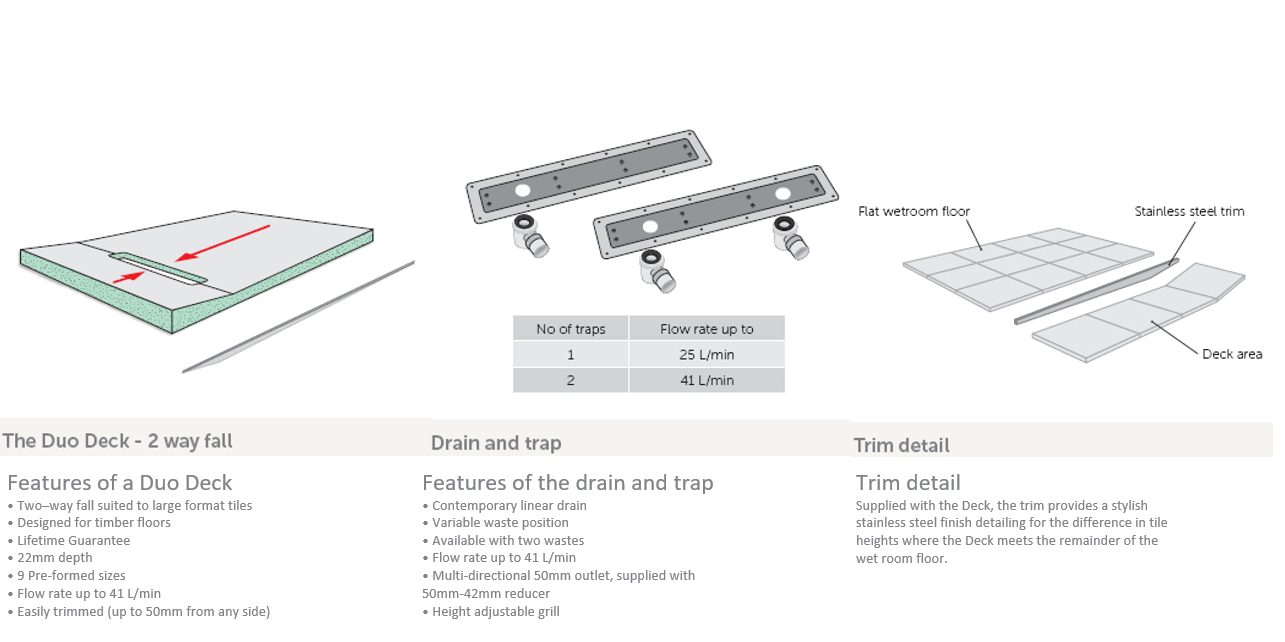

• The Duo Deck, with its contemporary linear drain, is perfect for ‘large format’ tiles, as there are fewer tile cuts required and hence fewer grout lines.
• The large tiles run seamlessly from the Deck area throughout the remainder of the wetroom.

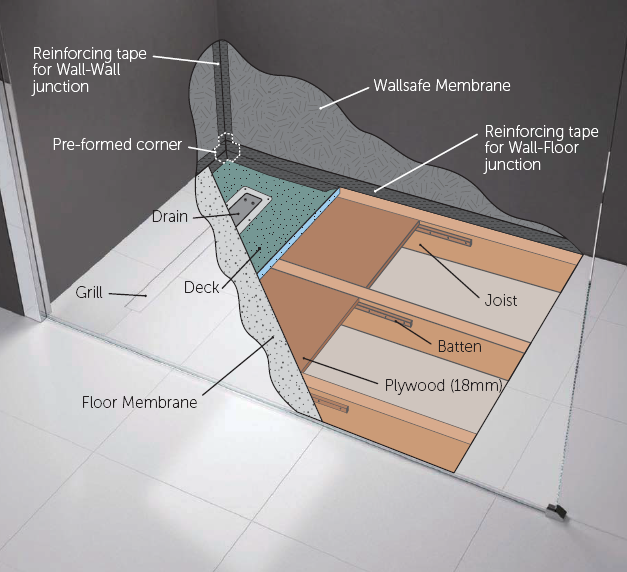

• The Drain and Deck are fixed to sheets of plywood held in place between the floor joists by battens.
• The Deck is covered by a waterproof Floor Membrane supplied as a Floor Membrane Kit.
• The wall is sealed with a waterproof Wall Membrane.
• The internal corner of the wetroom is protected using a Pre-formed corner, while the Wall-Floor horizontal joints and Wall-Wall vertical joints are sealed with reinforcing tape.
